Vehicle Side Camera (JA39B)
Unmatched Clarity, Built for the Toughest Jobs
SK-JA39B: Surface side-mounted vehicle camera with 1080P HD, IP69K waterproof rating, night vision, and optional built-in microphone.
Give Us a Call:
SK-JA39B Side Surface Mounted Vehicle Camera
Built to Handle the Toughest Conditions
The SK-JA39B, model #: sk-ja39b, is a rugged, high-performance side-mounted camera designed specifically for flat surfaces, making it perfect for trucks and other large vehicles. Its sleek design and removable camera ball make installation easier and more convenient. With IP69K waterproof rating, the SK-JA39B is built to withstand extreme weather conditions, ensuring reliability in even the harshest environments.
Key features include a 135° wide-angle lens and 6 infrared (IR) LED lights for superior night vision up to 10 meters. The camera also features an optional built-in microphone, allowing you to capture audio along with video for added security.

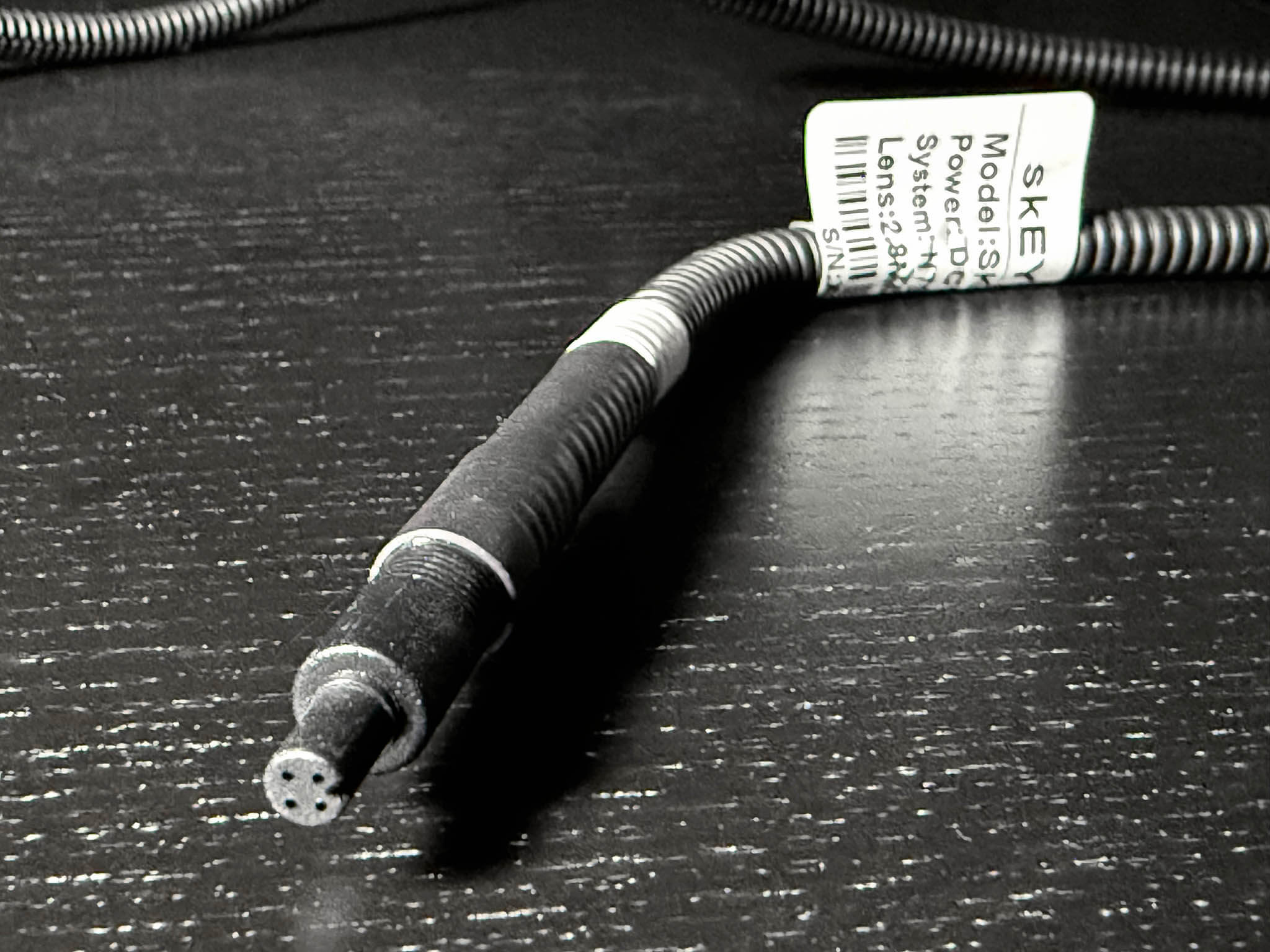

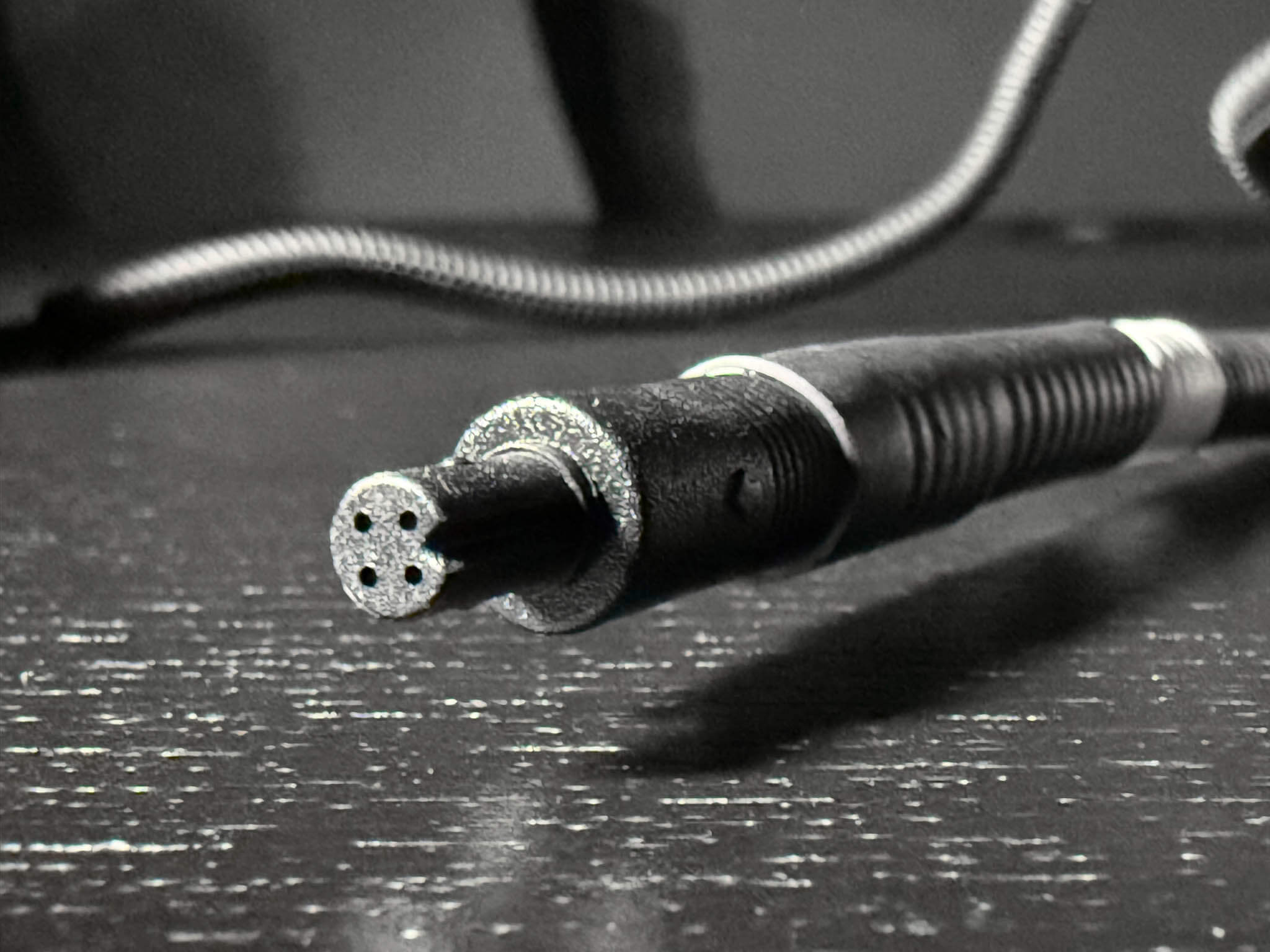

The camera’s wiring is protected within durable loom housing, providing extra protection against wear and tear, so you can rest assured that the system will function seamlessly over time.
Whether you’re looking for superior clarity, durability, or enhanced security features, the SK-JA39B delivers it all. Perfect for fleet management or any commercial vehicle looking for a reliable side-mounted camera solution.
Key Features
AHD Side Camera, FH8856 + Sony Imax 307 Sensor, WDR
Enjoy sharp, high-definition video quality with wide dynamic range (WDR) technology, providing clear visibility even in challenging lighting conditions, such as bright sunlight or shadows.1/3” CMOS & 2.8MM Lens, 135° Degree Field of View
Capture a broad area with the 135° wide-angle lens, ensuring you see more of your surroundings and minimize blind spots, improving overall safety.6PCS IR LED Lights, IR Distance: 5-10 Meters
Get crystal-clear night vision up to 10 meters with built-in infrared LEDs, so your vehicle remains secure even in complete darkness.Built-in IR Cut Switch and Night Vision: Black & White Color
Automatically switch between day and night modes with the IR Cut feature, ensuring optimal color accuracy during the day and crisp black-and-white images at night.Built-in Audio & Metal Camera Shell with IP69K Waterproof Rating
Benefit: Record both video and audio for enhanced monitoring, while the rugged, waterproof metal shell protects the camera from extreme weather and high-pressure water, making it ideal for tough environments.Camera Ball Removable Design for Easier Installation
Benefit: Simplify installation and adjustment with the removable camera ball design, allowing for quick setup and flexible positioning on any flat surface of your vehicle.
Need More Info?
Fill out & Submit the form below, and we’ll provide all the details you need to make an informed choice.
*Your privacy matters to us. Rest assured, your contact information will solely be used for addressing your initial request.

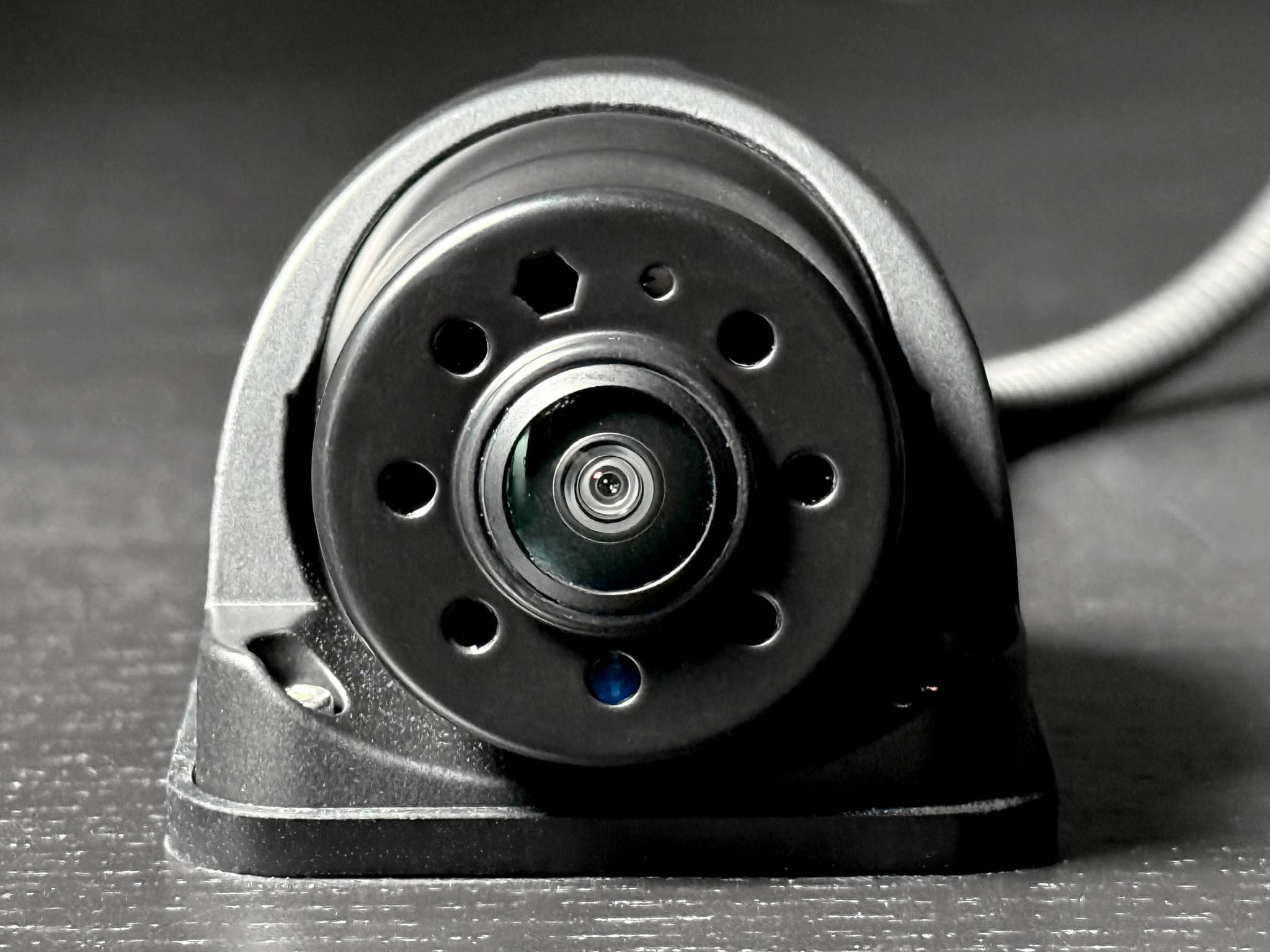

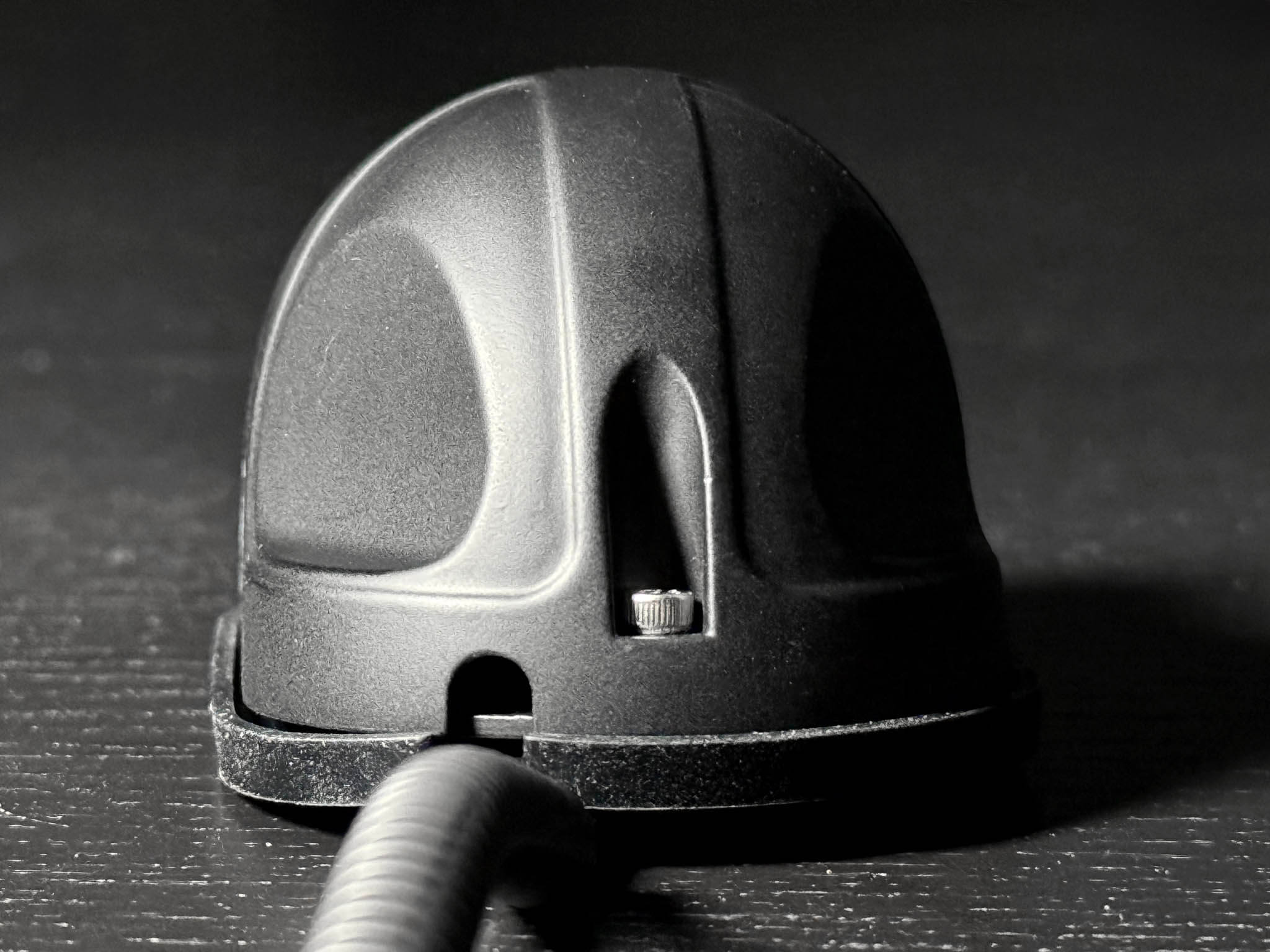

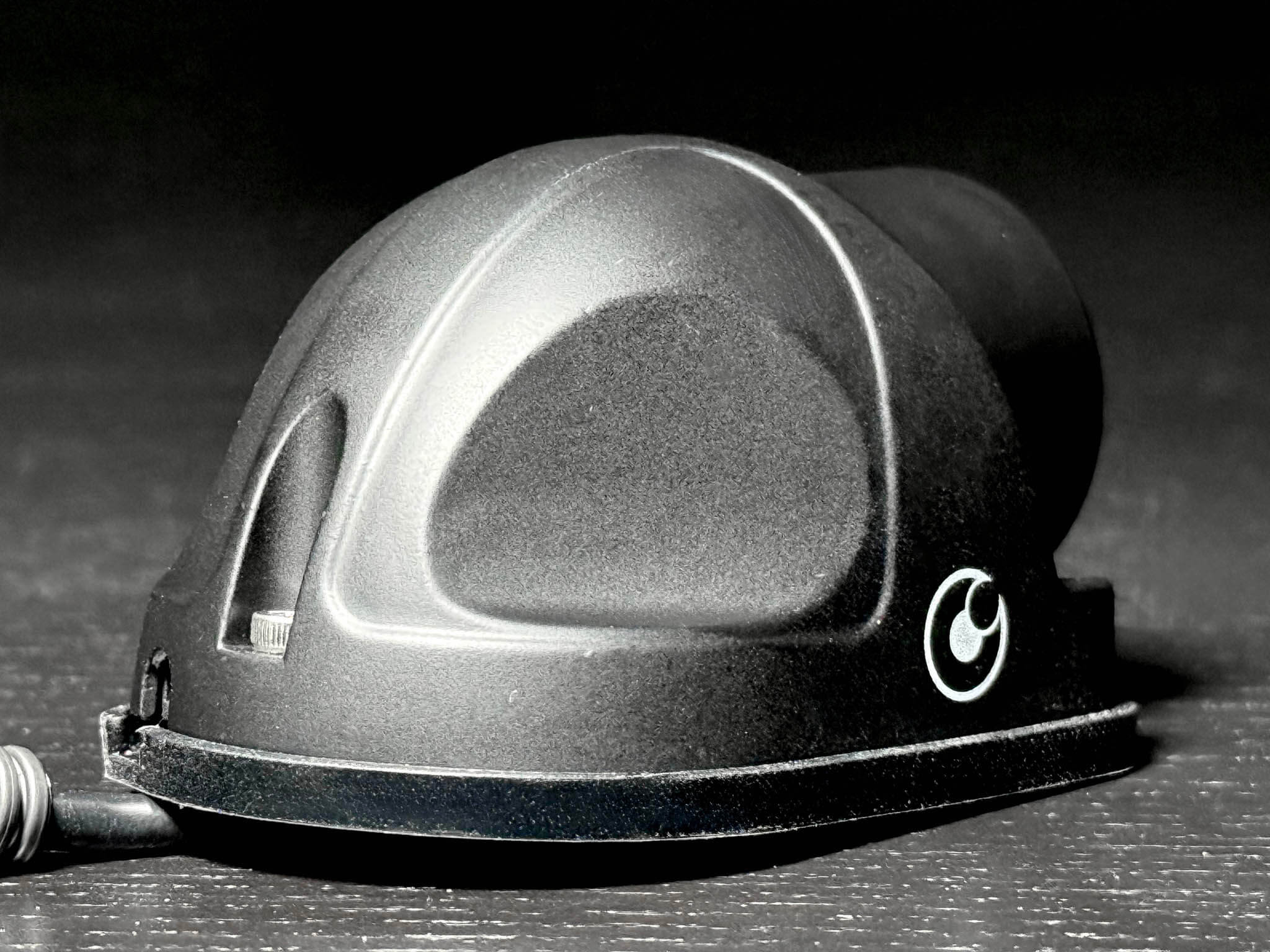

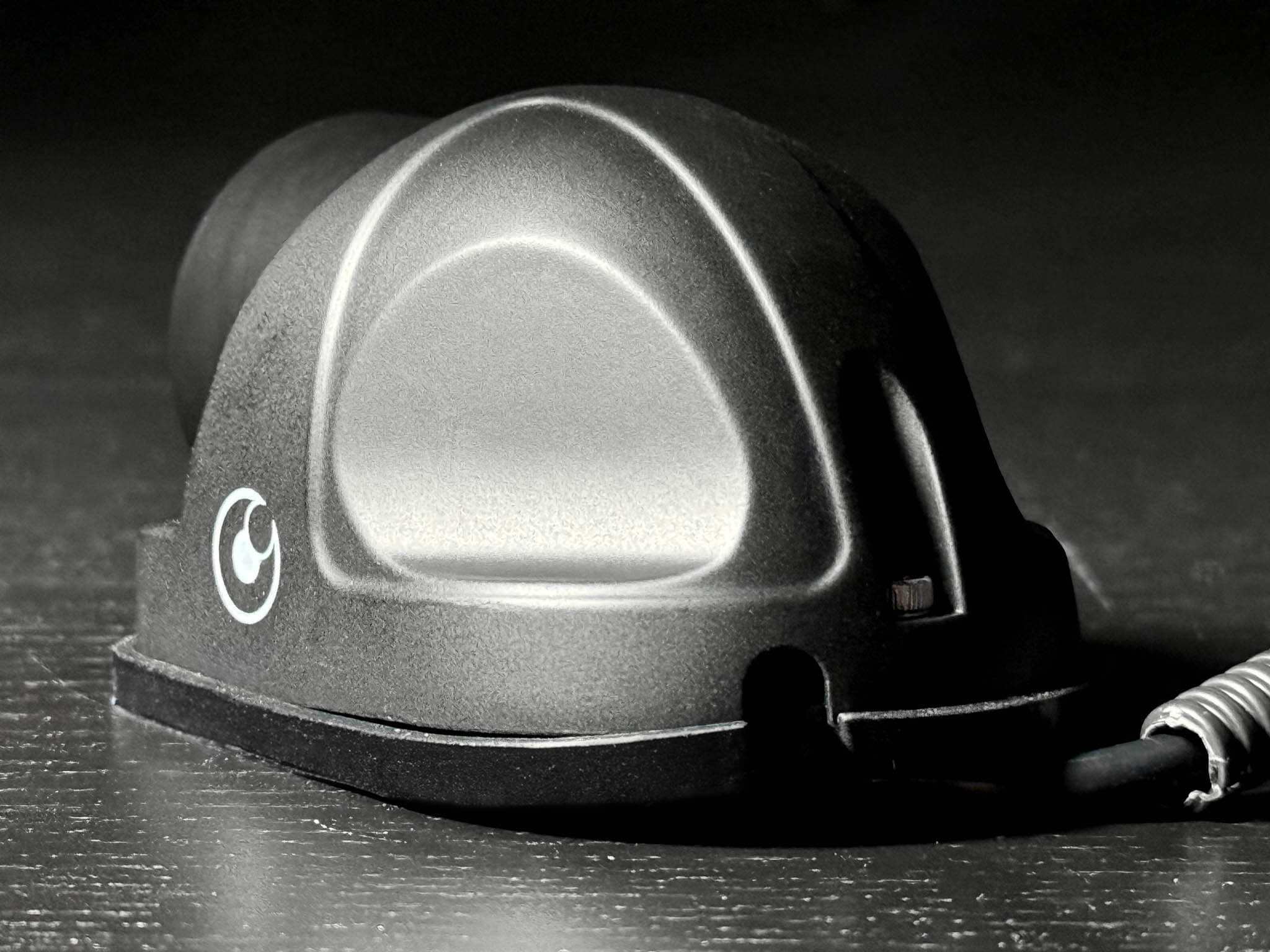

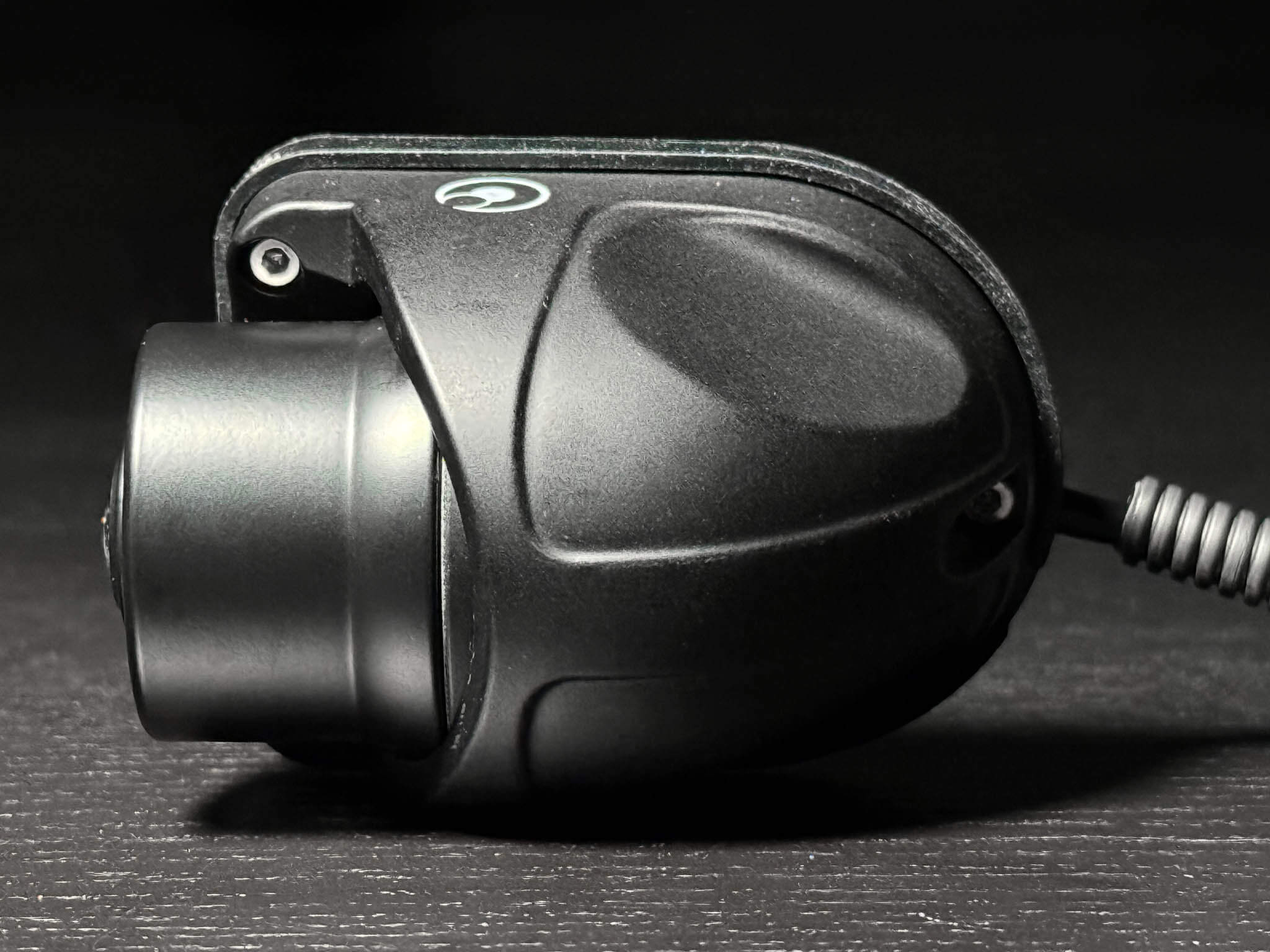

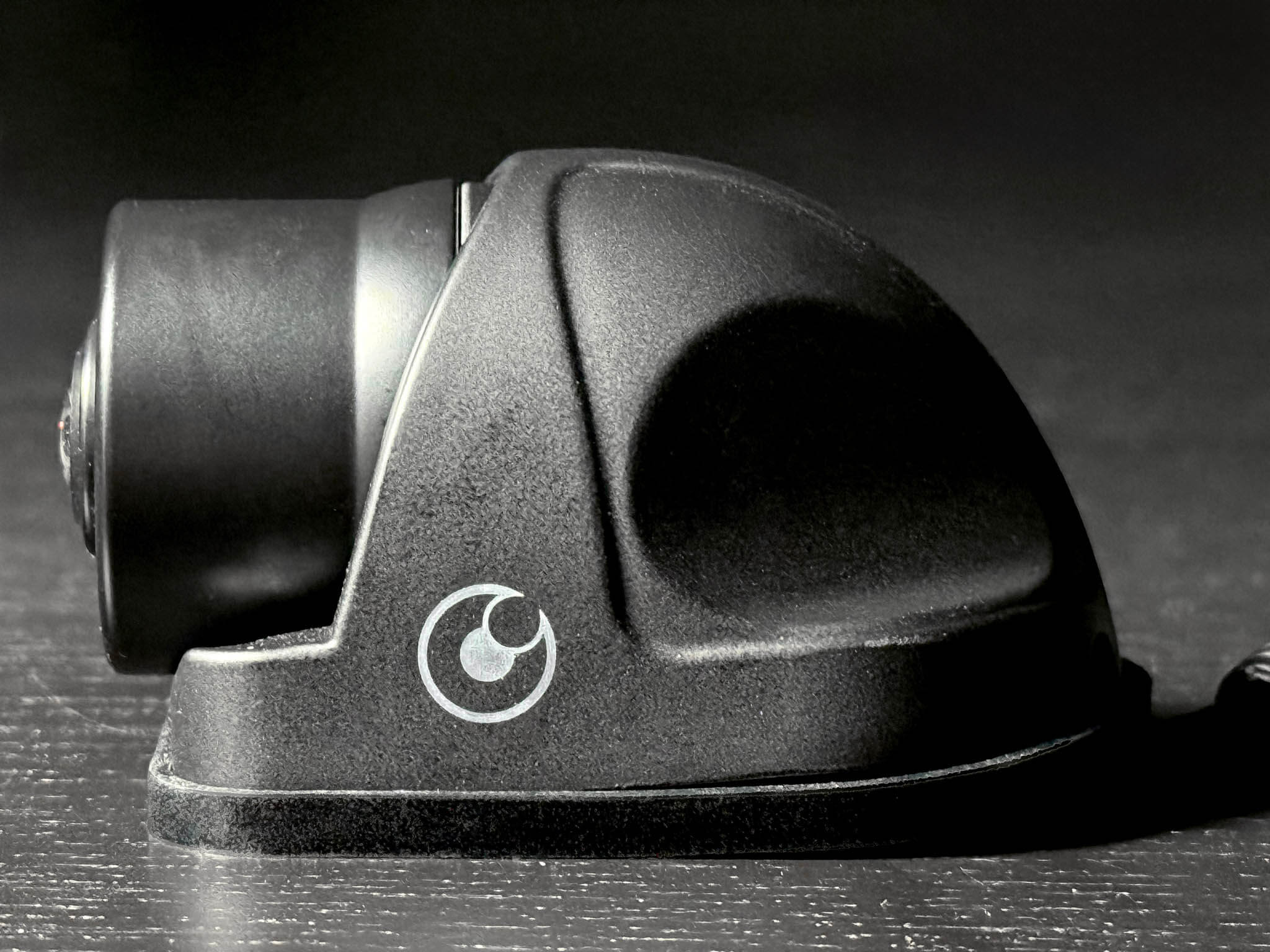

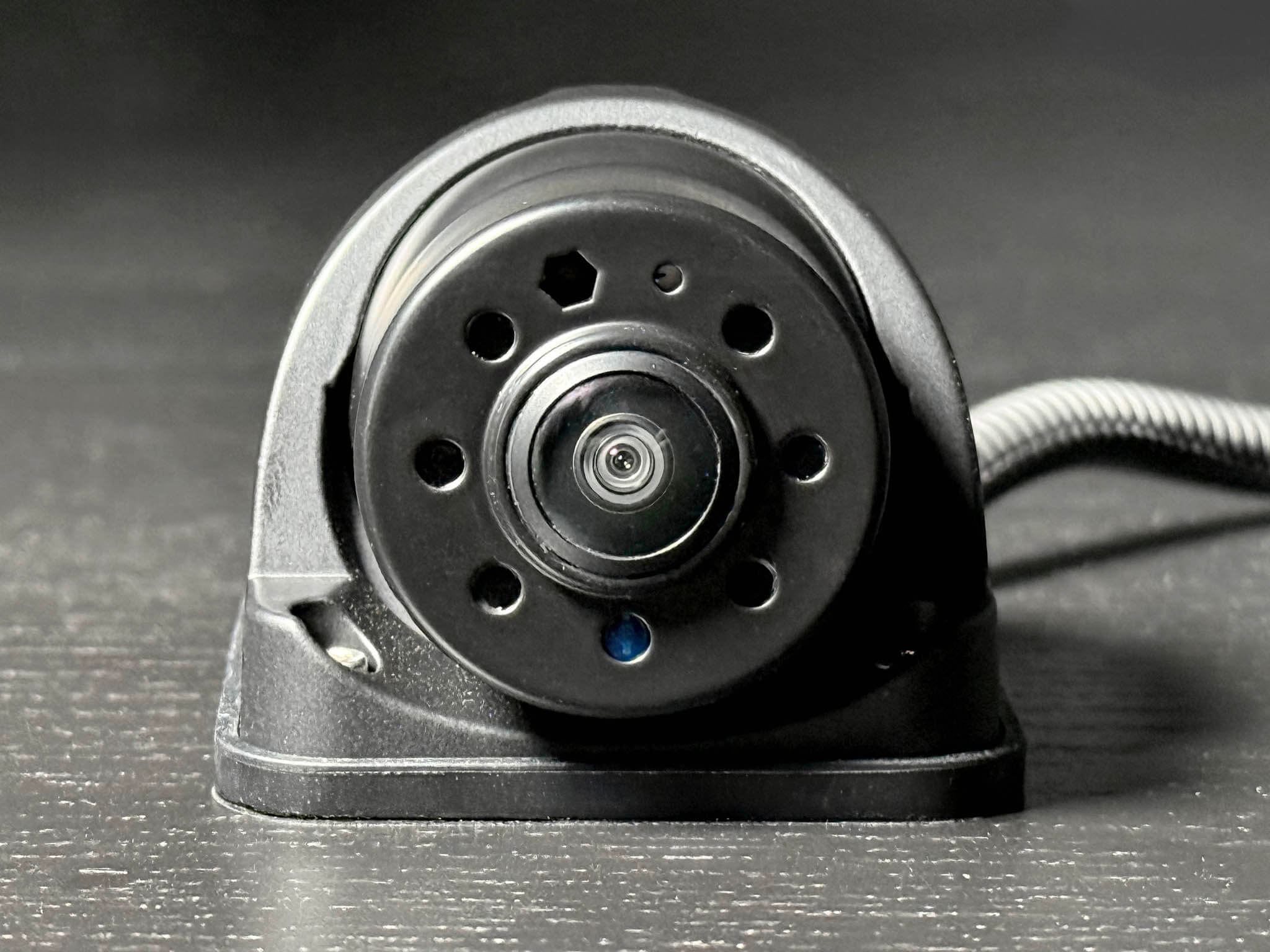

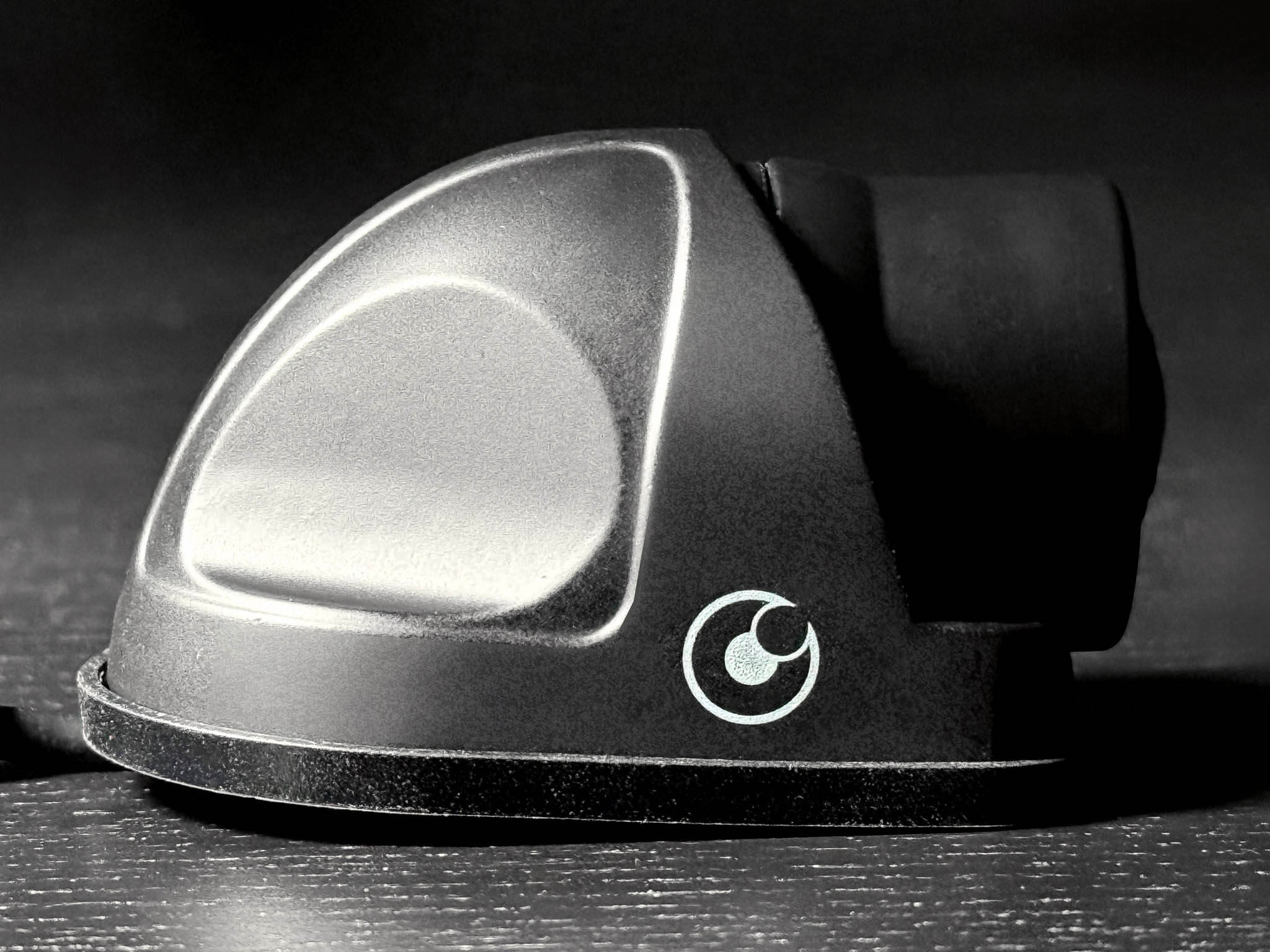

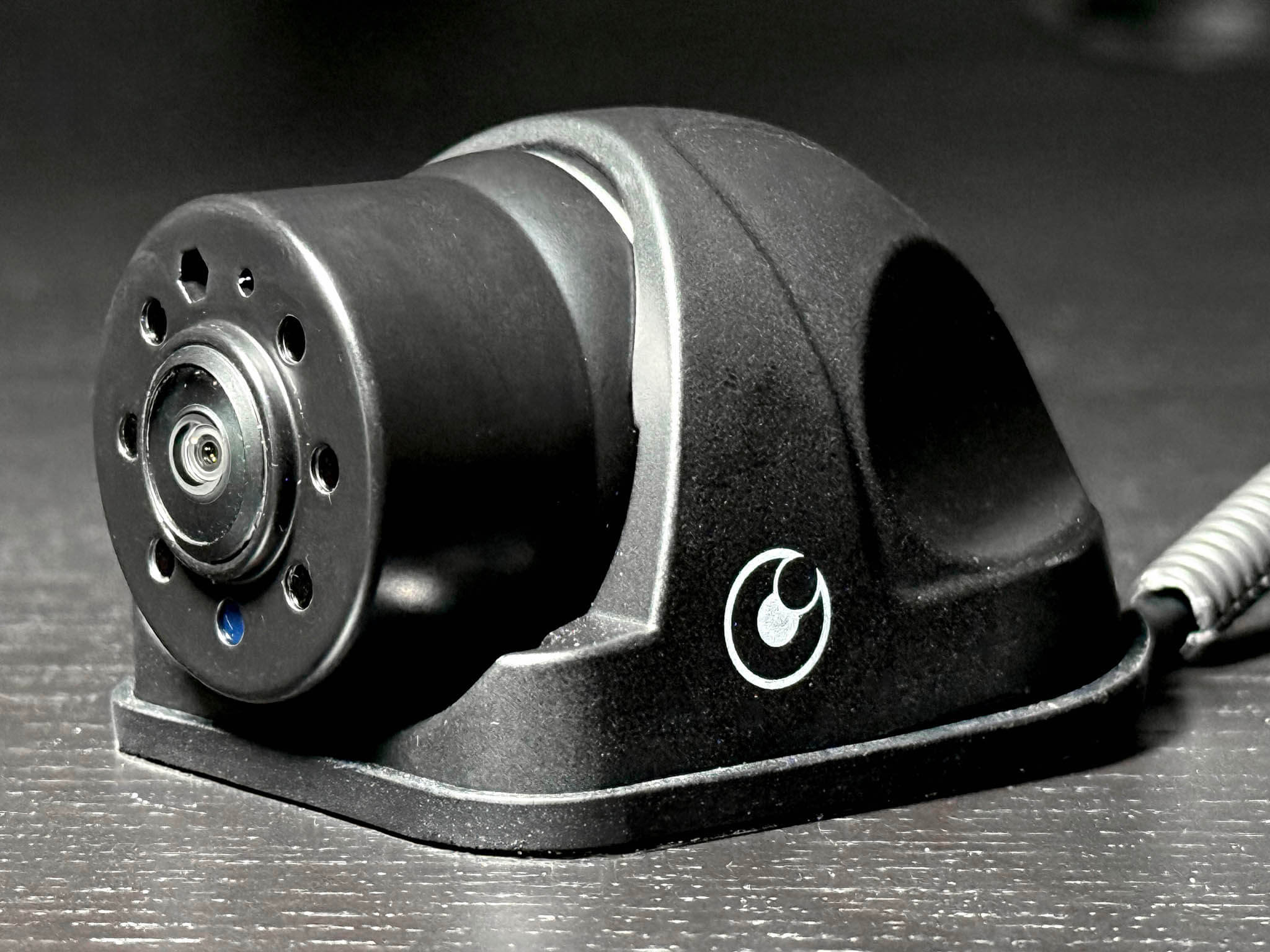

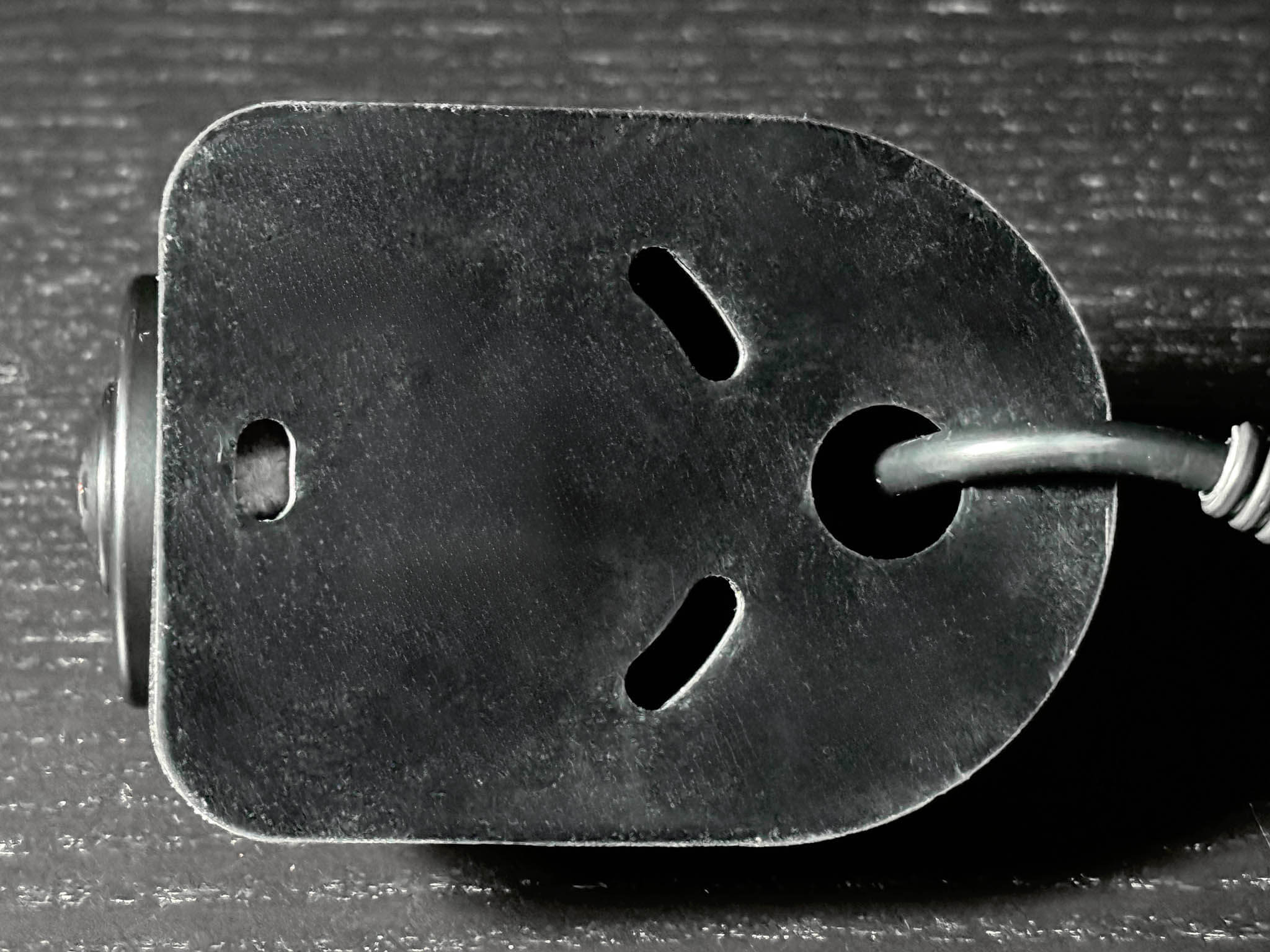

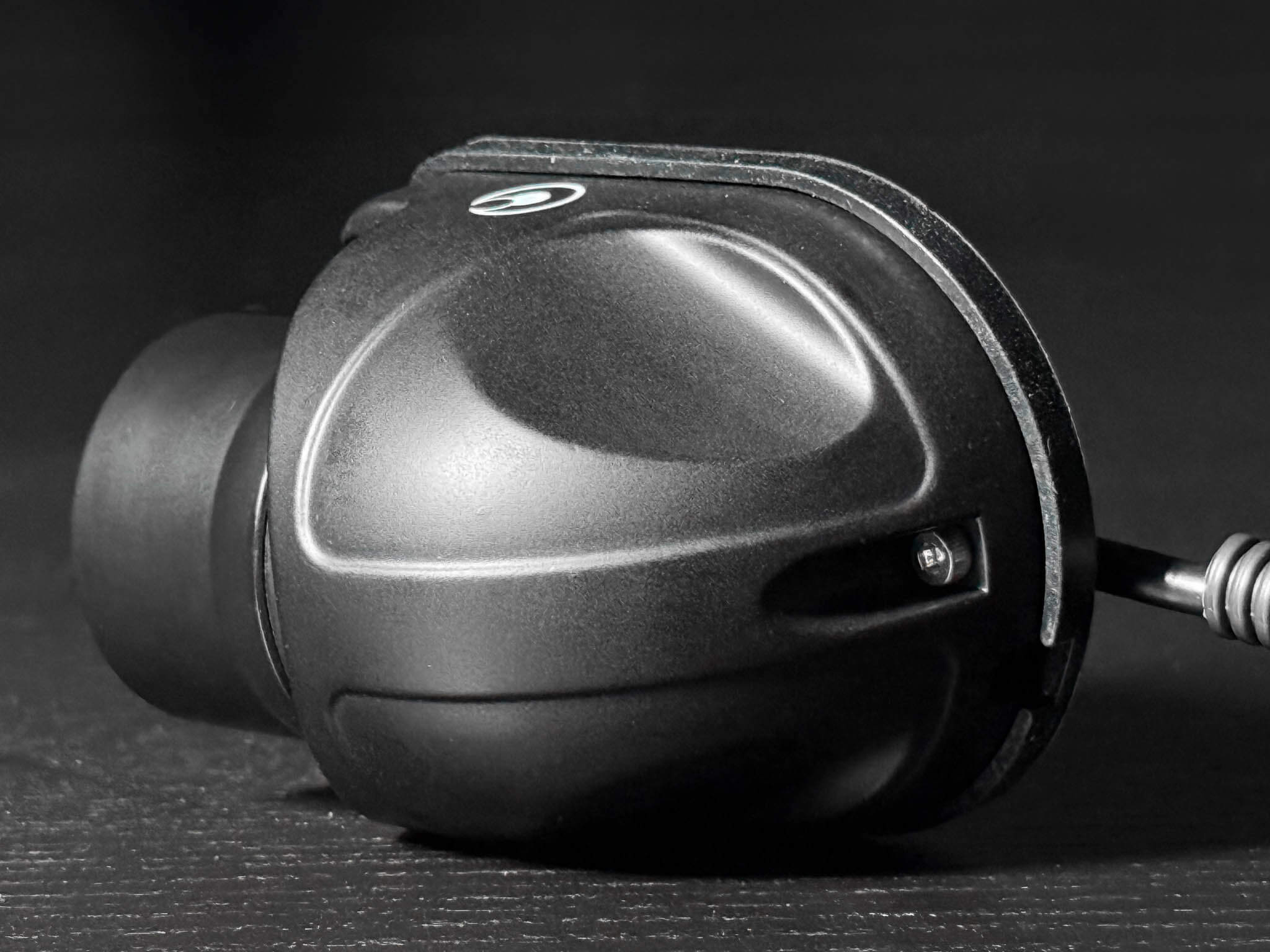

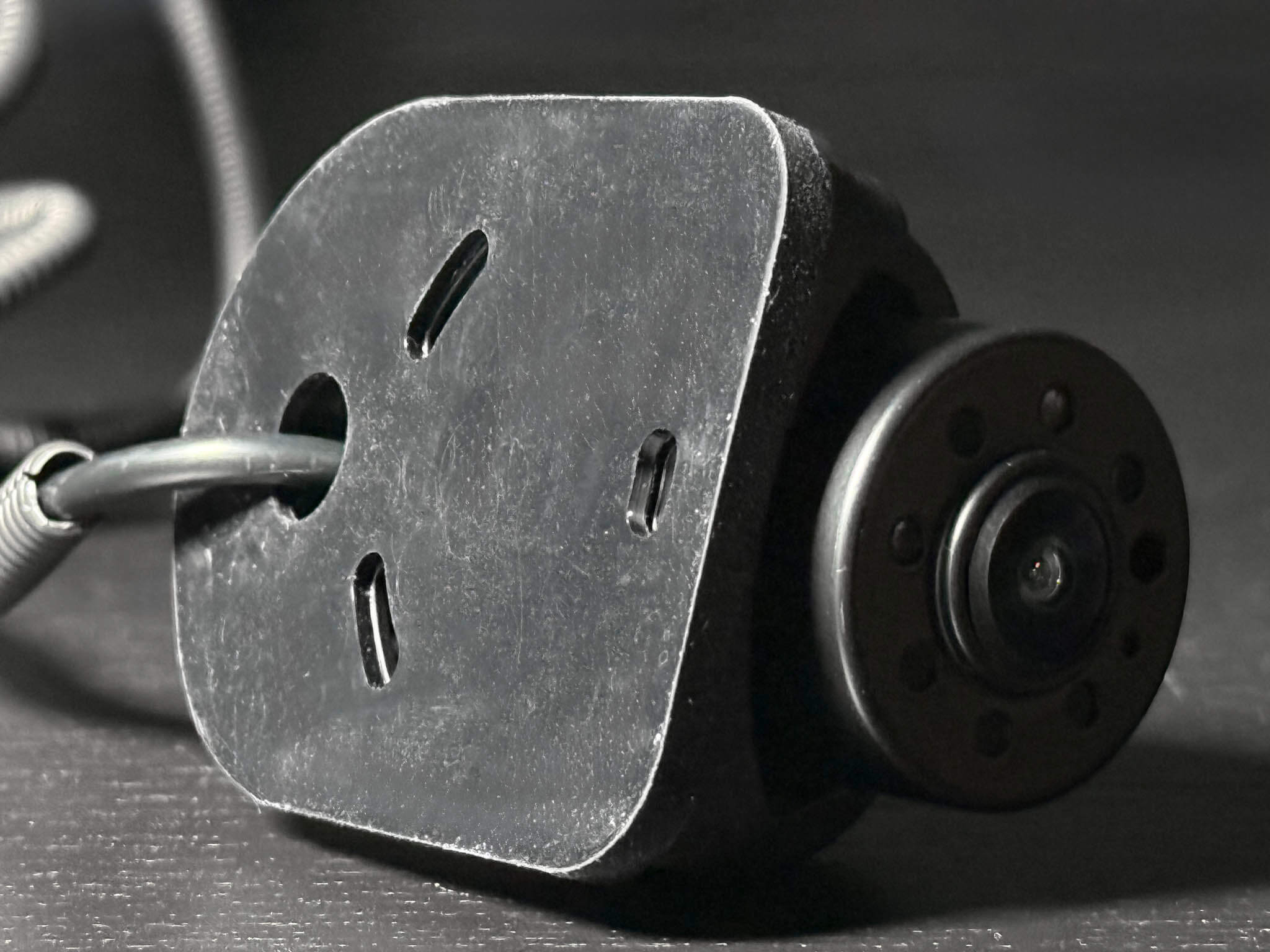

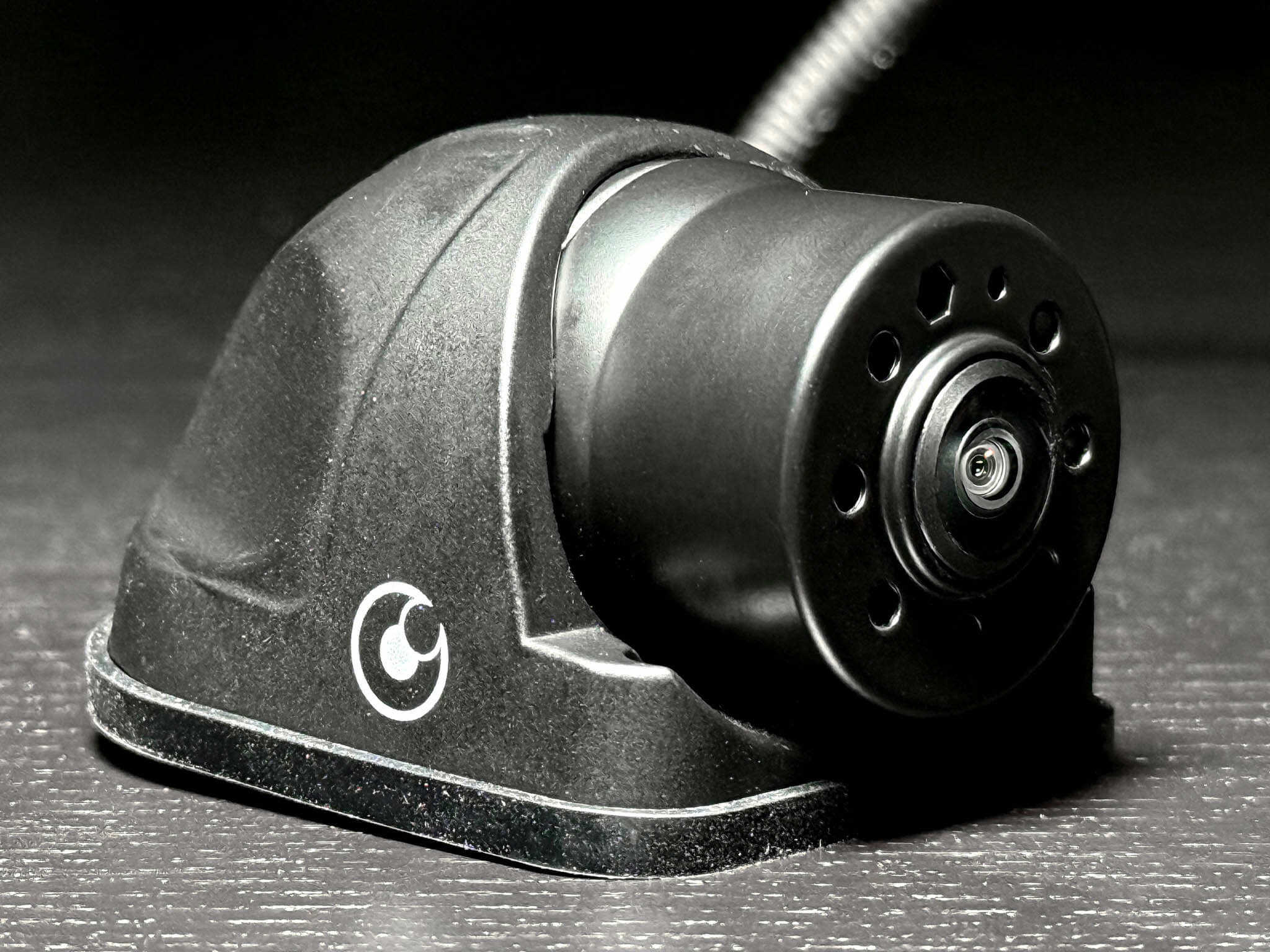

SK-JA39B Photo Gallery
SK-JA39B Specifications
- Sensor: 1/3” CMOS AHD
- Resolution: 1080P
- Lens: 2.8MM, 135°Degree
- IR LEDs: 18 pieces, IR distance: 10-15 meters
- Synchronization: Internal
- ICR: Auto
- S/N Ratio More than 50dB
- Auto Gain Control: Auto
- Electronic Shutter: Auto
- Noise Reduction: 3D
- BLC: Auto
- Power Supply: DC12V ±10%
- Waterproof Rating: IP69K
- Operating Temperature: -20°C to +75°C
- Weight: 180g
- Audio: Optional microphone
Model #: SK-JA39B
FAQs
FAQs About The JA39B Camera
What kind of surfaces can you mount the JA39B on?
The JA39B is designed for flat surfaces, typically mounted on the side of a vehicle's body for optimal visibility.
Is the JA39B camera waterproof?
Yes, the JA39B has an IP69K waterproof rating, making it highly resistant to water, dust, and even high-pressure cleaning.
Does the JA39B have night vision capabilities?
Yes, the JA39B features 6 infrared LED lights with a night vision range of 5-10 meters, allowing you to capture clear footage even in complete darkness.
Can the JA39B capture audio?
Yes, the camera includes an optional built-in microphone, which allows you to record audio along with video.
What is the field of view for the JA39B camera?
The JA39B has a 135° wide-angle lens, providing a broad field of view to reduce blind spots.
Is installation of the JA39B camera easy?
Yes, the JA39B features a removable camera ball design, making installation and positioning on flat surfaces quick and simple.
What kind of image quality does the JA39B provide?
The JA39B offers high-definition 1080P resolution with advanced sensors like the FH8856 + Sony Imax 307 for sharp and clear video.
Does the camera automatically adjust for different lighting conditions?
Yes, the JA39B comes with WDR (Wide Dynamic Range) and an IR Cut Switch, which allows it to adjust between day and night modes for optimal image clarity.
