ADAS Front Facing Camera (C40W)
Driving Safety to the Next Level with Intelligent ADAS Cameras
C40W: Front facing camera with artificial intelligence monitoring for advanced driver assistance systems. 2K Resolution, night vision, and built-in microphone.
Give Us a Call:
Discover the C40W ADAS Camera
The High Cost of Inadequate Safety Measures
The Challenge of Modern Fleet Safety
Introducing the skEYEwatch C40W ADAS Camera
The ultimate safety companion for your commercial fleet. The C40W is a front windshield-mounted camera designed for the skEYEvue commercial vehicle camera system. It monitors the road ahead in real-time, alerting drivers to potential hazards and helping them stay safe on the road.
C40W Product Overview
The C40W is a versatile, intelligent vehicle camera system designed to enhance road safety and provide precise monitoring for commercial fleets. Its advanced features include standard Advanced Driver Assistance Systems (ADAS) and bridge height limit detection, offering a comprehensive solution for various driving environments and vehicle types. Below are the key features and the benefits they bring:
- Advanced Safety Alerts: The C40W supports ADAS functions and bridge height limit detection, instantly warning drivers of obstacles and low-clearance areas to enhance safety and prevent costly incidents.
- High-Quality Video Monitoring: Equipped with a high-resolution camera (2688 x 1520 pixels) and a frame rate of 25-30fps, the C40W provides crisp, clear footage for precise monitoring and event analysis.
- Superior Night Visibility: Utilizing an intelligent black light solution, the C40W delivers superior image quality in low-light conditions, ensuring road visibility during nighttime driving and reducing the risk of accidents.
- Real-Time Audio Alerts: The built-in IIC and speaker system enable in-car audio acquisition and voice alarm reminders, providing real-time alerts to drivers, enhancing their situational awareness and response time.
- Adjustable for Variable Heights: An external keyboard interface supports real-time adjustment of vehicle height values, ensuring accurate detection and compliance for vehicles with variable height scenarios, such as agricultural or warehouse trucks.
- Built for Extreme Environments: Designed to function effectively in temperatures ranging from -40°C to +70°C, the C40W is suitable for use in diverse and extreme environments, ensuring reliable performance.
- Energy-Efficient Operation: With low power consumption (approx. 4.6W for stand-alone and 3.6W for the slave version), the C40W minimizes vehicle battery drain, offering a cost-effective and efficient solution for fleet monitoring.
Need More Info?
Fill out & Submit the form below, and we’ll provide all the details you need to make an informed choice.
*Your privacy matters to us. Rest assured, your contact information will solely be used for addressing your initial request.

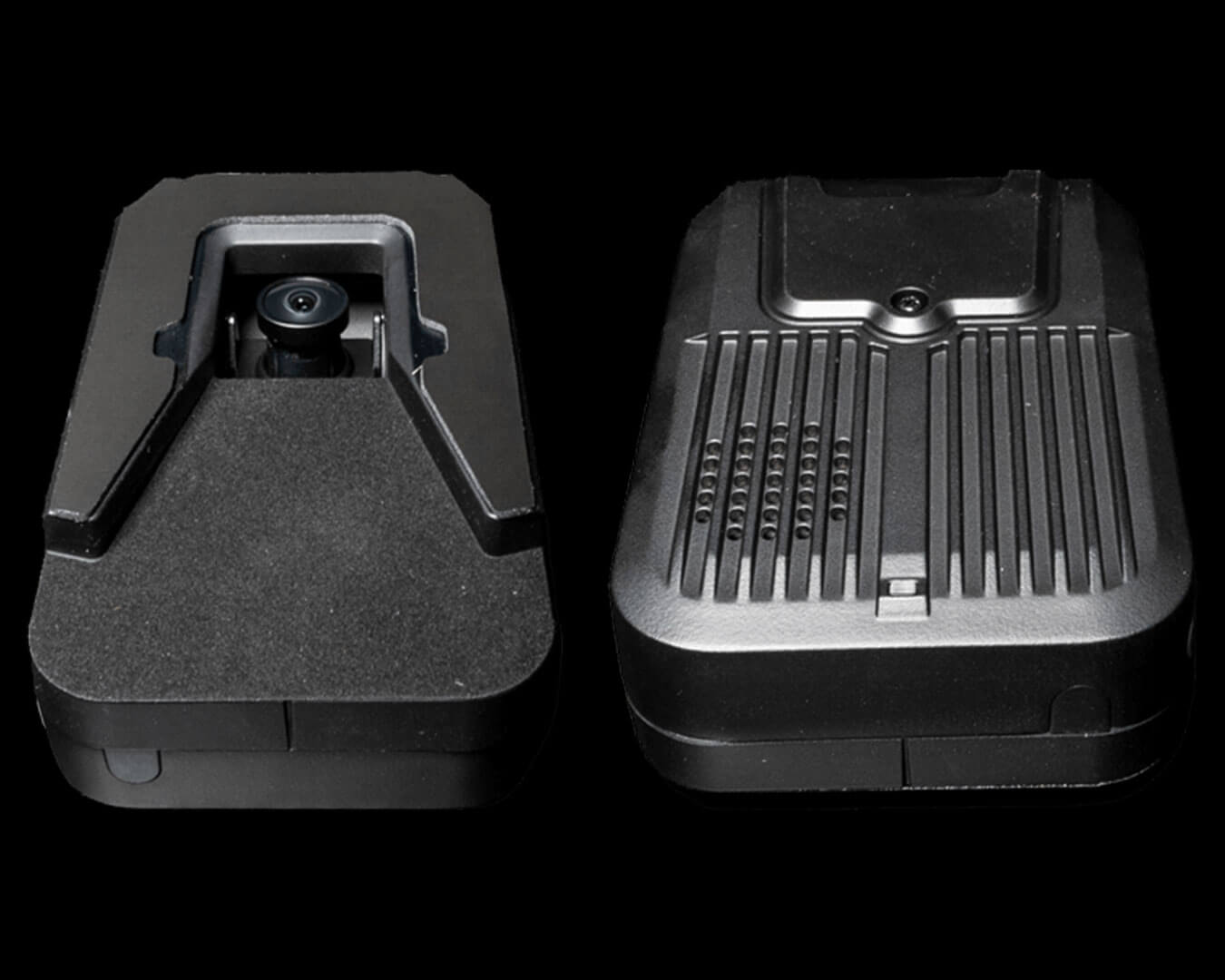

SK-JA39B Photo Gallery
C40W Specifications
- Product Model: C40W
- System: Embedded Linux
- Multilingual Support: English, Chinese
- Resolution: 2688 x 1520 @ 25fps or 30fps
- Video Encoding: H.264/H.265 (default: H.264)
- Video Bitrate: Variable Bit Rate (VBR) / Constant Bit Rate (CBR) (default: VBR)
- Camera Parameters:
- Sensor Type: 1/1.8″ 4MP CMOS
- Shutter Speed: 1/20s to 1/100000s
- Focal Length: Options available:
- 8.5mm (HFOV: 52°, VFOV: 29.5°)
- 3.7mm (HFOV: 125°, VFOV: 68°)
- Minimum Illumination: Color: 0.01 Lux/F1.6
- Lens Interface: M12
- Wide Dynamic Range: Digital Wide Dynamic
- Backlight Compensation: Supported
- Signal-to-Noise Ratio (S/N): ≥45dB
- Sensors: Six-axis (supports rapid acceleration, deceleration, and turn detection)
- Interfaces (Slave Version):
- IPC Interface: RS765-6 aviation female connector
- Keypad Interface: Little 5559-4P
- R-Watch Interface: Little 5559-6P
- Interfaces (Stand-Alone Version):
- Keypad Interface: Little 5559-4P
- R-Watch Interface: Little 5559-6P
- GPS Interface: Little 5559-4P
- MDVR Interface: RS765-6 aviation female connector
- Vehicle Power Input: 3-pin bulk wire (DC IN+, DC IN-, ACC)
- Network Protocols: HTTP, TCP, ARP, UDP, FTP, DHCP, DNS, IPv4, NTP
- Power Supply:
- Stand-Alone: 9-36V
- Slave Version: 9-16V
- Power Consumption:
- Stand-Alone: approx. 4.6W @24V
- Slave Version: approx. 3.6W @12V
- Operating Temperature: -40°C to +70°C
- Humidity Range: 15% – 90%
- Protection Class: IP5X
- Dimensions: L126mm x W78mm x H48.6mm (±2.5mm error)
C40W ADAS Camera
Revolutionizing Fleet Safety with AI-Powered ADAS Cameras
Key Features
Key Benefits:
- Following Too Close: Warns drivers when they are too close to the vehicle ahead, preventing rear-end collisions.
- Impact Detection: Detects sudden impacts and provides instant alerts, ensuring immediate response to potential accidents.
- Lane Departure: Monitors lane position and alerts drivers when they unintentionally drift out of their lane, reducing the risk of sideswipe accidents.
- Bridge and Tunnel Height Limit Detection: Identifies height restrictions and warns drivers, preventing costly collisions with overhead structures.
- Night Vision: Equipped with an intelligent black light solution, the C40W ensures superior night image quality compared to similar products.
Why Choose the C40W ADAS Cam?
- High-Resolution Imaging: With a resolution of 2688*1520@25fps or 30fps, capture every detail on the road.
- Versatile Lens Options: Choose from a variety of lens specifications to suit your specific needs.
- Wide Dynamic Range and Backlight Compensation: Ensures clear visibility in diverse lighting conditions.
- Real-Time Audio and Visual Alerts: Built-in IIC and speakers provide instant warnings inside the vehicle.
- Flexible Installation: Supports upper and lower exit cables, adaptable to various vehicle models.
- Durable and Reliable: Operates efficiently in extreme temperatures (-40℃ to +70℃) and high humidity levels (15% – 90%).
Ideal for:
- Commercial Fleets: Enhance driver safety and reduce accident risks across your entire fleet.
- Long-Haul Trucking: Provide continuous monitoring and alerts for long-distance drivers.
- Public Transportation: Ensure passenger safety with real-time monitoring and alerts.
- Emergency Vehicles: Improve response times and safety for emergency service drivers.
- Specialty Vehicles: Adaptable to various vehicle types, including agricultural and warehouse trucks.
Expand Your Fleet’s Capabilities with skEYEvue: AI-Enhanced Safety Solutions
Our Advanced Driver Assistance Systems (ADAS) Camera is a key component of the skEYEvue AI-Driven Fleet Safety System. But there’s more to our suite of safety solutions. With real-time monitoring of driver behavior, from detecting drowsiness to collision avoidance, skEYEvue’s comprehensive system offers continuous coaching and feedback. This ensures your drivers remain vigilant, and your fleet operates at peak safety and efficiency.
Explore the Full skEYEvue A.I. System
